DSP1-DC48V-F

8A MINIATURE POWER RELAY

DSP1-DC48V-F Features

* Power types added to DS relay series

* High switching capacity: 1a: 8 A 250 V AC / 1a1b, 2a: 5 A 250 V AC

* High sensitivity: 190 mW pick-up power

* High contact welding resistance

* Latching types available

* High breakdown voltage 3,000 Vrms betwee

DSP1-DC48V-F Datasheet (171.39 KB)

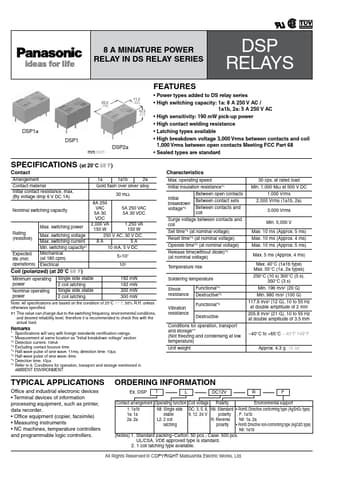

Preview of DSP1-DC48V-F PDF

Datasheet Details

Part number:

DSP1-DC48V-F

Manufacturer:

Panasonic

File Size:

171.39 KB

Description:

8a miniature power relay.
