DSP1-DC6V-R

small polarized power relays

DSP1-DC6V-R Features

* 1. Compact with high contact rating Even with small 10 mm .394 inch (H) x 11 mm .433 inch (W) x 20 mm .787 inch (L) (dimensions, high capacity switching is provided: 1a, 8 A 250 V AC; 2a and 1a1b, 5 A 250 V AC. 2. High switching capability High contact pressure, low contact bounce, and wiping operat

DSP1-DC6V-R Datasheet (113.99 KB)

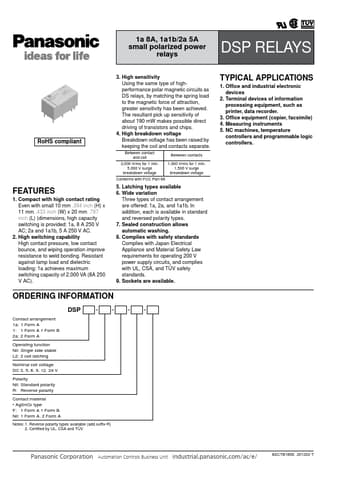

Preview of DSP1-DC6V-R PDF

Datasheet Details

Part number:

DSP1-DC6V-R

Manufacturer:

Panasonic

File Size:

113.99 KB

Description:

Small polarized power relays.
