ECHU1C271xX5

Stacked Metallized PPS Film Chip Capacitor

Panasonic

Download Datasheet (412.17 KB)

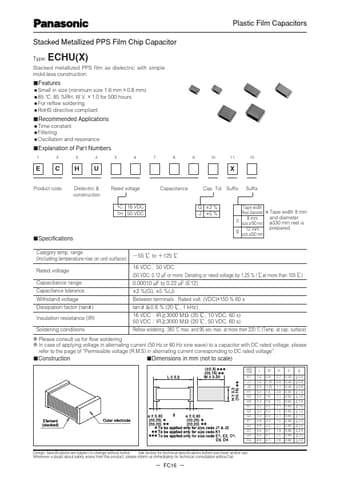

ECHU1C271xX5 Datasheet Preview — Preview of ECHU1C271xX5 Datasheet

Datasheet Details

Part number:

ECHU1C271xX5

Manufacturer:

Panasonic

File Size:

412.17 KB

Description:

Stacked metallized pps film chip capacitor.
Plastic Film Capacitors Stacked Metallized PPS Film Chip Capacitor Type: ECHU(X) Stacked metallize.
d PPS film as dielectric with simple mold-less construction * Features * Small in size (minimum si.

✔ ECHU1C271xX5 Features

Small in size (minimum size 1.6 mm ✕ 0.8 mm)
85 ˚C, 85 %RH, W.V. ✕ 1.0 for 500 hours
For reflow soldering
RoHS directive compliant
Recommended Applications

✔ ECHU1C271xX5 Application

Time-constant
Filtering
Oscillation and resonance
Explanation of Part Numbers 1 2 3 4 5 6 7 8 9 10
