ECHU1H181xX5, ECHU1C101xX5 Stacked Metallized PPS Film Chip Capacitor

Panasonic

Description

Plastic Film Capacitors Stacked Metallized PPS Film Chip Capacitor Type: ECHU(X) Stacked metallized PPS film as dielectric with simple mold-less con.

📥 Download Datasheet

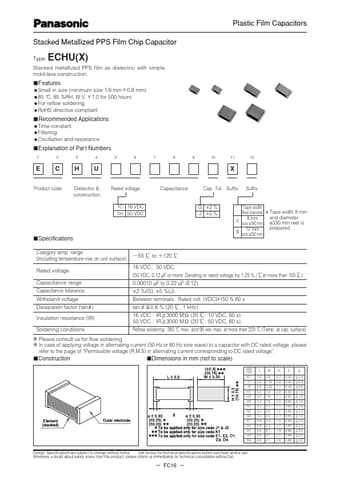

ECHU1H181xX5 Datasheet Preview — This datasheet PDF includes multiple part numbers: ECHU1H181xX5, ECHU1C101xX5. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: ECHU1H181xX5, ECHU1C101xX5
Manufacturer: Panasonic
File Size: 412.17 KB
Datasheet: ECHU1C101xX5_Panasonic.pdf
Description: Stacked Metallized PPS Film Chip Capacitor
Note: This datasheet PDF includes multiple part numbers: ECHU1H181xX5, ECHU1C101xX5.
Please refer to the document for exact specifications by model.

Features

* Small in size (minimum size 1.6 mm ✕ 0.8 mm)
* 85 ˚C, 85 %RH, W. V. ✕ 1.0 for 500 hours
* For reflow soldering
* RoHS directive compliant

Applications

* Time-constant
* Filtering
* Oscillation and resonance
* Explanation of Part Numbers 1 2 3 4 5 6 7 8 9 10 11 12 E C H U Rated voltage Capacitance X Cap. Tol. Suffix Suffix Product code Dielectric & construction 1C 16 VDC 1H 50 VDC G ±2 % J ±5 %
* Specifica
