ECHU1H331xX5, ECHU1C101xX5, Stacked Metallized PPS Film Chip Capacitor

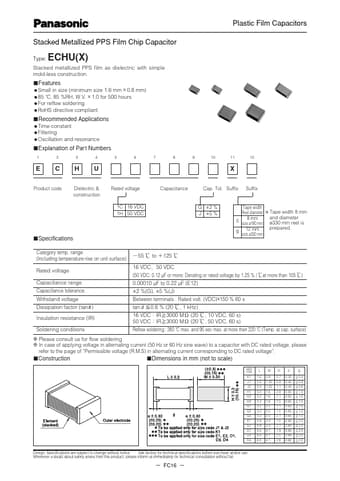

Plastic Film Capacitors Stacked Metallized PPS Film Chip Capacitor Type: ECHU(X) Stacked metallized PPS film as dielectric with simple mold-less con.

ECHU1C101xX5_Panasonic.pdf

ECHU1H331xX5 Datasheet Preview — This datasheet PDF includes multiple part numbers: ECHU1H331xX5, ECHU1C101xX5. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

ECHU1H331xX5, ECHU1C101xX5

Manufacturer:

Panasonic

File Size:

412.17 KB

Description:

Stacked Metallized PPS Film Chip Capacitor

Note:

This datasheet PDF includes multiple part numbers: ECHU1H331xX5, ECHU1C101xX5.
Please refer to the document for exact specifications by model.

Features

* Small in size (minimum size 1.6 mm ✕ 0.8 mm)
* 85 ˚C, 85 %RH, W. V. ✕ 1.0 for 500 hours
* For reflow soldering
* RoHS directive compliant

Applications

* Time-constant
* Filtering
* Oscillation and resonance
* Explanation of Part Numbers 1 2 3 4 5 6 7 8 9 10 11 12 E C H U Rated voltage Capacitance X Cap. Tol. Suffix Suffix Product code Dielectric & construction 1C 16 VDC 1H 50 VDC G ±2 % J ±5 %
* Specifica
