ECWF4823xLxxx - Metallized Polypropylene Film Capacitor

This page provides the datasheet information for the ECWF4823xLxxx, a member of the ECWF Metallized Polypropylene Film Capacitor family.

Datasheet Summary

Features

  • s.
  • Small size.
  • Excellent frequency characteristics.
  • Low loss.
  • 85 ˚C, 85 % RH, W. V. ✕1.0 for 500 hours.
  • RoHS directive compliant.
  • Recommended.

📥 Download Datasheet

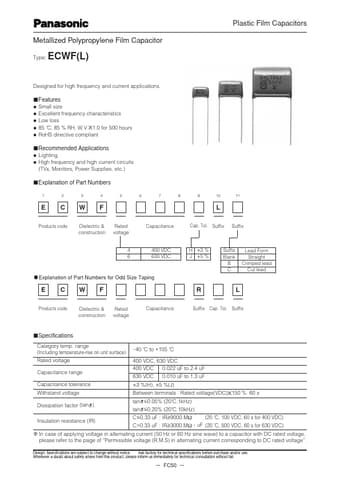

Datasheet preview – ECWF4823xLxxx

Datasheet Details

Part number ECWF4823xLxxx
Manufacturer Panasonic
File Size 350.61 KB
Description Metallized Polypropylene Film Capacitor
Datasheet download datasheet ECWF4823xLxxx Datasheet
Additional preview pages of the ECWF4823xLxxx datasheet.

📁 Similar Datasheet

  • ECW20N20 - N-CHANNEL LATERAL MOSFET (EXICON)
  • ECW20N20-Z - N-CHANNEL LATERAL MOSFET (EXICON)
  • ECW20P20 - P-CHANNEL LATERAL MOSFET (EXICON)
  • ECW20P20-Z - P-CHANNEL LATERAL MOSFET (EXICON)
Other Datasheets by Panasonic

Full PDF Text Transcription

Click to expand full text
Plastic Film Capacitors Metallized Polypropylene Film Capacitor Type: ECWF(L) Designed for high frequency and current applications. ■ Features • Small size • Excellent frequency characteristics • Low loss • 85 ˚C, 85 % RH, W.V.✕1.0 for 500 hours • RoHS directive compliant ■ Recommended Applications • Lighting • High frequency and high current circuits (TVs, Monitors, Power Supplies, etc.) ■ Explanation of Part Numbers 1 2 3 4 5 6 7 8 9 10 11 E C W F Rated voltage Capacitance L Cap. Tol.
