EEE0JA470NP, EEE-1CA101WP Datasheet - Panasonic

EEE0JA470NP, EEE-1CA101WP, (EEExxxx) Aluminum Electrolytic Capacitors

Aluminum Electrolytic Capacitors Surface Mount Type S series .

EEE-1CA101WP_Panasonic.pdf

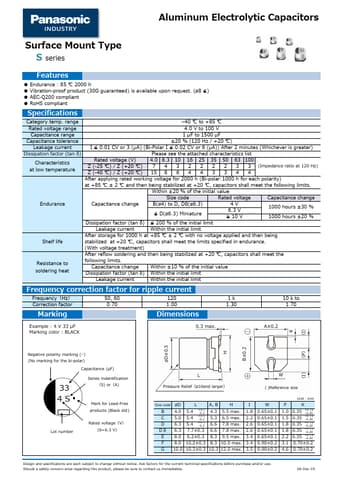

EEE0JA470NP Datasheet Preview — This datasheet PDF includes multiple part numbers: EEE0JA470NP, EEE-1CA101WP. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

EEE0JA470NP, EEE-1CA101WP

Manufacturer:

Panasonic

File Size:

555.63 KB

Description:

(EEExxxx) Aluminum Electrolytic Capacitors

Note:

This datasheet PDF includes multiple part numbers: EEE0JA470NP, EEE-1CA101WP.
Please refer to the document for exact specifications by model.

Features

* Endurance : 85 ℃ 2000 h
* Vibration-proof product (30G guaranteed) is available upon request. (ø8 ≦)
* AEC-Q200 compliant
* RoHS compliant Specifications Category temp. range
* 40 ℃ to +85 ℃ Rated voltage range 4.0 V to 100 V Capacitance range 1 μF to 1500 μF Capaci
