EEUFC0J471 - Aluminum Electrolytic Capacitors

Product Overview

Panasonic

Part number	EEUFC0J471
Manufacturer	Panasonic
File Size	146.00 KB
Description	Aluminum Electrolytic Capacitors
Datasheet	EEUFC0J471 Datasheet
Note	This datasheet PDF includes multiple part numbers: EEUFC0J471, EEUFC1V102. Please refer to the document for exact specifications by model.

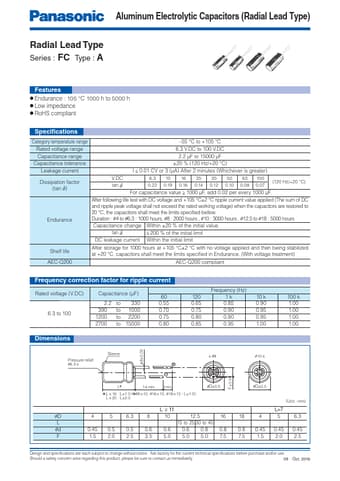

Additional preview pages of the EEUFC0J471 datasheet.

Endurance : 105 °C 1000 h to 5000 h.
Low impedance.
RoHS compliant Specifications Category temperature range.
55 °C to +105 °C Rated voltage range 6.3 V. DC to 100 V. DC Capacitance range 2.2 µF to 15000 µF Capacitance tolerance ±20 % (120 Hz/+20 °C) Leakage current I < 0.01 CV or 3 (µA) After 2 minutes (Whichever is greater) Dissipation factor (tan d) Endurance V. DC tan d 6.3 10 16 25 35 50 63 100 (120 Hz/+20 °C) 0.22 0.19 0.16 0.14 0.12 0.10 0.08 0.07 For c.
