ELL6xH101M, ELL6xH1R0M Datasheet - Panasonic

ELL6xH101M, ELL6xH1R0M, Power Inductors / Wire Wound type

Choke Coils Power Inductors / Wire Wound type Series: Type: H ELL6RH ELL6SH ELL6UH * .

ELL6xH1R0M_Panasonic.pdf

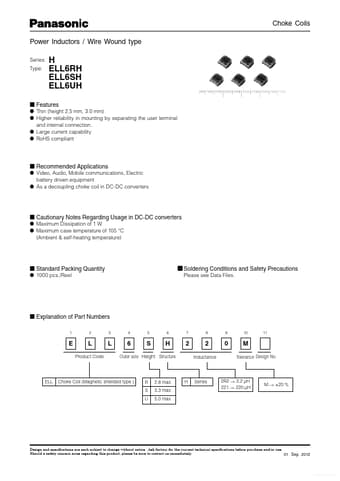

ELL6xH101M Datasheet Preview — This datasheet PDF includes multiple part numbers: ELL6xH101M, ELL6xH1R0M. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

ELL6xH101M, ELL6xH1R0M

Manufacturer:

Panasonic

File Size:

122.96 KB

Description:

Power Inductors / Wire Wound type

Note:

This datasheet PDF includes multiple part numbers: ELL6xH101M, ELL6xH1R0M.
Please refer to the document for exact specifications by model.

Features

* Thin (height 2.5 mm, 3.0 mm)
* Higher reliability in mounting by separating the user terminal and internal connection.
* Large current capability
* RoHS compliant

Applications

* Video, Audio, Mobile communications, Electric battery driven equipment
* As a decoupling choke coil in DC-DC converters
* Cautionary Notes Regarding Usage in DC-DC converters
* Maximum Dissipation of 1 W.
* Maximum case temperature of 105 °C (Ambient & self-heating temperatur
