ETPE330M9GB, ETPE330MA9GB Datasheet - Panasonic

ETPE330M9GB, ETPE330MA9GB, Conductive Polymer Tantalum Solid Capacitor

Surface Mount Type TPE series B size Conductive Polymer Tantalum Solid Capacitors .

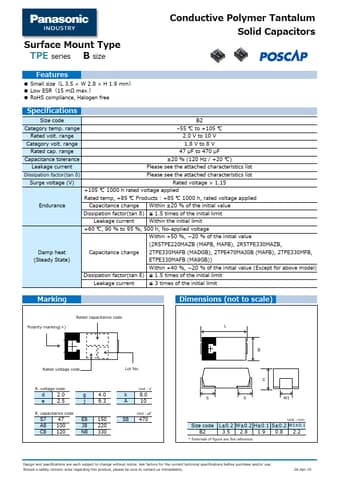

datasheet Preview Page 1 from Datasheet4u.com

ETPE330MA9GB-Panasonic.pdf

ETPE330M9GB Datasheet Preview — This datasheet PDF includes multiple part numbers: ETPE330M9GB, ETPE330MA9GB. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

ETPE330M9GB, ETPE330MA9GB

Manufacturer:

Panasonic

File Size:

468.68 KB

Description:

Conductive Polymer Tantalum Solid Capacitor

Note:

This datasheet PDF includes multiple part numbers: ETPE330M9GB, ETPE330MA9GB.
Please refer to the document for exact specifications by model.

Features

* Small size（L 3.5 × W 2.8 × H 1.9 mm）
* Low ESR（15 mΩ max. ）
* RoHS compliance, Halogen free Specifications Size code B2 Category temp. range Rated volt. range Category volt. range Rated cap. range
* 55 ℃ to +105 ℃ 2.0 V to 10 V 1.8 V to 8 V 47 μF to 470 μF Capacitance toler
