ETQP2H0R7BFA Datasheet - Panasonic

ETQP2H0R7BFA, Power Choke Coil

Choke Coils Power Choke Coil Series: Japan Singapore PCC-D125H (NX2) Low profile, High power, Low loss Industrial Property: Patents 2 (pending) n F.

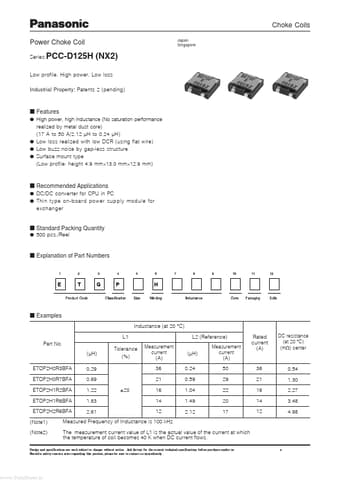

datasheet Preview Page 1 from Datasheet4u.com

ETQP2H0R7BFA_Panasonic.pdf

ETQP2H0R7BFA Datasheet Preview — Preview of ETQP2H0R7BFA PDF

Datasheet Details

Part number:

ETQP2H0R7BFA

Manufacturer:

Panasonic

File Size:

254.01 KB

Description:

Power Choke Coil

Features

* l High power, high inductance (No saturation performance realized by metal dust core) (17 A to 50 A/2.12 µH to 0.24 µH) l Low loss realized with low DCR (using flat wire) l Low buzz noise by gap-less structure l Surface mount type (Low profile: height 4.9 mm´13.0 mm´12.9 mm) n Recommended Applicati

Applications

* l DC/DC converter for CPU in PC l Thin type on-board power supply module for exchanger n Standard Packing Quantity l 500 pcs. /Reel n Explanation of Part Numbers 1 2 3 4 5 6 7 8 9 10 11 12 - 6 Product Code 3 2 Classification Size 0 Winding Inductance Core Packaging Suffix n Examples Inductanc
