EZJZ1V500AA, EZJZ0V120JA, Multilayer Varistor

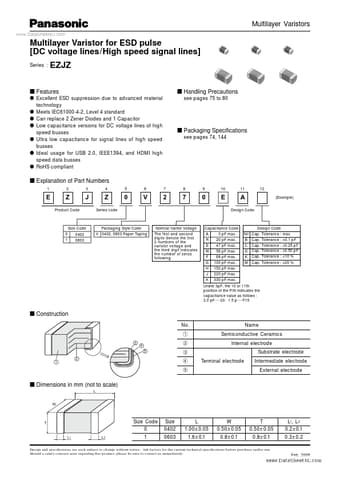

Multilayer Varistors www.DataSheet4U.com Multilayer Varistor for ESD pulse [DC voltage lines/High speed signal lines] Series : EZJZ * Handling P.

EZJZ0V120JA_Panasonic.pdf

EZJZ1V500AA Datasheet Preview — This datasheet PDF includes multiple part numbers: EZJZ1V500AA, EZJZ0V120JA. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

EZJZ1V500AA, EZJZ0V120JA

Manufacturer:

Panasonic

File Size:

338.20 KB

Description:

Multilayer Varistor

Note:

This datasheet PDF includes multiple part numbers: EZJZ1V500AA, EZJZ0V120JA.
Please refer to the document for exact specifications by model.

Features

* Excellent ESD suppression due to advanced material technology
* Meets IEC61000-4-2, Level 4 standard
* Can replace 2 Zener Diodes and 1 Capacitor
* Low capacitance versions for DC voltage lines of high speed busses
* Ultra low capacitance for signal lines of high speed busses

Applications

* Mobile phone DSC, DVC PC, PDA TV, DVD Game console Antenna circuit, External IF USB2.0, IEEE1394 USB2.0, IEEE1394, LAN1000BASE USB2.0, IEEE1394, HDMI Controller, External IF
* Ratings and Characteristics Size Part No. EZJZ0V80010 EZJZ0V80015D EZJZ0V500AA EZJZ0V800AA EZJZ0V171AA EZJZ1V80010 EZJZ
