LKS1aF-5V Datasheet - Panasonic

LKS1aF-5V, power relays

TV-5 rated.High sensitivity: 250mW 1a 5A power relays VDE LK-S LK-S RELAYS RoHS compliant .

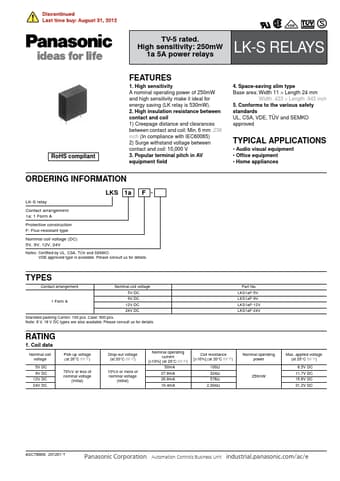

datasheet Preview Page 1 from Datasheet4u.com

LKS1aF-5V-Panasonic.pdf

LKS1aF-5V Datasheet Preview — Preview of LKS1aF-5V PDF

Datasheet Details

Part number:

LKS1aF-5V

Manufacturer:

Panasonic

File Size:

95.94 KB

Description:

power relays

Features

* 1. High sensitivity A nominal operating power of 250mW and high sensitivity make it ideal for energy saving (LK relay is 530mW). 2. High insulation resistance between contact and coil 1) Creepage distance and clearances between contact and coil: Min. 6 mm .236 inch (In compliance with IEC60065) 2) S

Applications

* Audio visual equipment
* Ofﬁce equipment
* Home appliances ORDERING INFORMATION LKS 1a F LK-S relay Contact arrangement 1a: 1 Form A Protective construction F: Flux-resistant type Nominal coil voltage (DC) 5V, 9V, 12V, 24V Notes: Certified by UL, CSA, TÜV and SEMKO VDE app
