MA111 - Switching Diodes

Panasonic

MA111 Description

Switching Diodes MA2J111 (MA111) Silicon epitaxial planar type For switching circuits I .

MA111 Features

* Small S-mini type package, allowing high-density mounting
* Short reverse recovery time trr
* Small terminal capacitance, Ct
* High breakdown voltage (VR = 80 V) I Absolute Maximum Ratings Ta = 25°C Parameter Symbol Rating Reverse voltage (DC) Peak reverse volt

📥 Download Datasheet

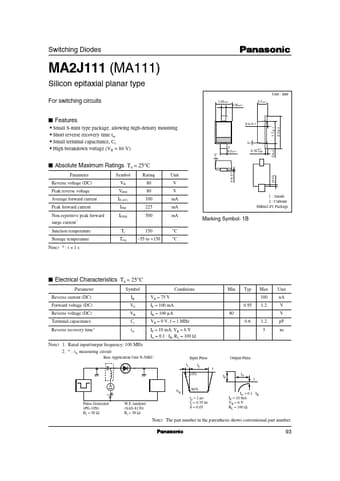

MA111 Datasheet Preview — Preview of MA111 PDF

Datasheet Details

Part number: MA111
Manufacturer: Panasonic
File Size: 58.13 KB
Datasheet: MA111_PanasonicSemiconductor.pdf
Description: Switching Diodes
