MA113 - Silicon epitaxial planar type Switching Diodes

Product Overview

Panasonic

Part number	MA113
Manufacturer	Panasonic
File Size	187.86 KB
Description	Silicon epitaxial planar type Switching Diodes
Datasheet	MA113 Datasheet

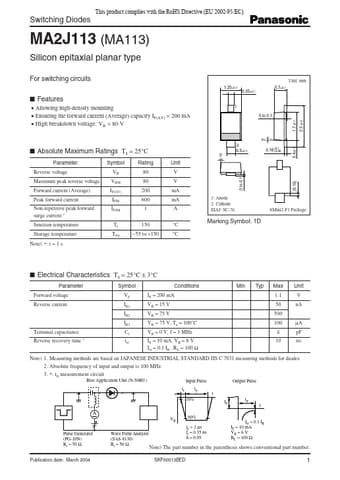

Additional preview pages of the MA113 datasheet.

s.
Allowing high-density mounting.
Ensuring the forward current (Average) capacity IF(AV) = 200 mA.
High breakdown voltage: VR = 80 V 1.25±0.1 0.35±0.1 Unit: mm 0.7±0.1 1 0 to 0.1 1.7±0.1 2.5±0.2 0 to 0.1 5˚.
Absolute Maximum Ratings Ta = 25°C Parameter Symbol Rating Reverse voltage Maximum peak reverse voltage Forward current (Average) Peak forward current Non-repetitive peak forward surge current.
VR VRM IF(AV) IFM IFSM 80 80 200 600 1 Junction.
