MN101EF29G, MN101E29G Datasheet - Panasonic

MN101EF29G - Microcontroller

MN101E29 Series Type Internal ROM type ROM (byte) RAM (byte) Package (Lead-free) Minimum Instruction Execution Time MN101E29G MN101EF29G Mask ROM FLASH 128K 128K+4K 6K LQFP100-P-1414, QFP100-P-1818B 50 ns (at 2.2 V to 5.5 V, 20 MHz) : at internal 2 , 3 , 4 , 5 , 6 , 8 , 10 times oscillation used Interrupts 6 external interrupts.

28 internal interrupts RESET.

NMI.

External 0 to 4.

Timer 0 to 4.

Timer 6.

Timer 7 (2 systems).

Timer 8 (2 systems).

Timer 9 (2 systems).

Time base

MN101E29G-Panasonic.pdf

This datasheet PDF includes multiple part numbers: MN101EF29G, MN101E29G. Please refer to the document for exact specifications by model.

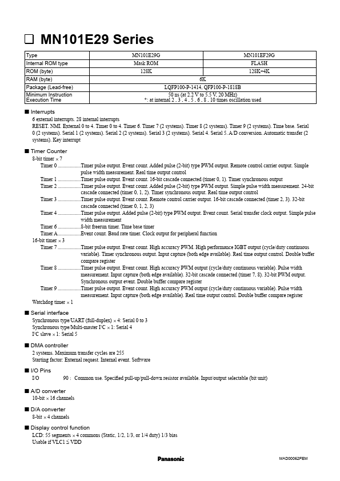

MN101EF29G Datasheet Preview Page 2 MN101EF29G Datasheet Preview Page 3

Datasheet Details

Part number:

MN101EF29G, MN101E29G

Manufacturer:

Panasonic

File Size:

318.17 KB

Description:

Microcontroller.

Note:

This datasheet PDF includes multiple part numbers: MN101EF29G, MN101E29G.
Please refer to the document for exact specifications by model.
