MN101EF32D Datasheet - Panasonic

MN101EF32D Microcontroller

MN101E32 Series Type Internal ROM type ROM (byte) RAM (byte) Package (Lead-free) Minimum Instruction Execution Time MN101EF32D FLASH 64K+8K 4K LQFP064-P-1414 50 ns (at 2.7 V to 5.5 V, 20 MHz) : at internal 2 , 3 , 4 , 5 , 6 , 8 , 10 times oscillation used Interrupts 6 external interrupts. 23 internal interrupts RESET. NMI. External 0 to 4. Timer 0 to 4. Timer 6. Timer 7 (2 systems). Timer 8 (2 systems). Time base. Serial 0 (2 systems). Serial 1 (2 systems). Serial 2 (2 systems). Se.

MN101EF32D Datasheet (311.55 KB)

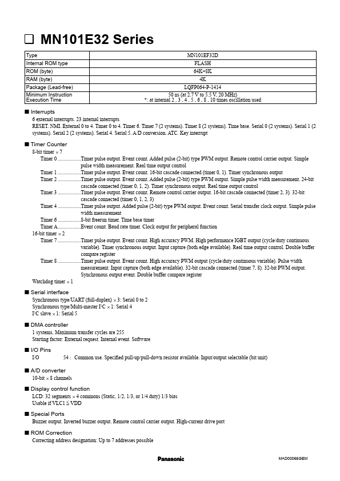

Preview of MN101EF32D PDF

Datasheet Details

Part number:

MN101EF32D

Manufacturer:

Panasonic

File Size:

311.55 KB

Description:

Microcontroller.
