MN103SA2 Datasheet - Panasonic

MN103SA2 Microcontroller

MN103SA2 Series Type Internal ROM type ROM (byte) RAM (byte) Package (Lead-free) Minimum Instruction Execution Time MN103SFA2R FLASH 1024K 64K LQFP100-P-1414 (Under development) 16.7 ns (at 2.7 V to 3.6 V, 60 MHz) Interrupts RESET. IRQ × 8. NMI. Timer × 32. I2C × 3. SIF × 16. DMA × 12. WDT. A/D. Time base timer × 2. System error. Key input. Remote control × 4. CAN × 2 Timer Counter 8-bit timer A × 10 Reload-down count. Cascade connection possible (usable as a 16-bit to 32-bit tim.

MN103SA2 Datasheet (316.41 KB)

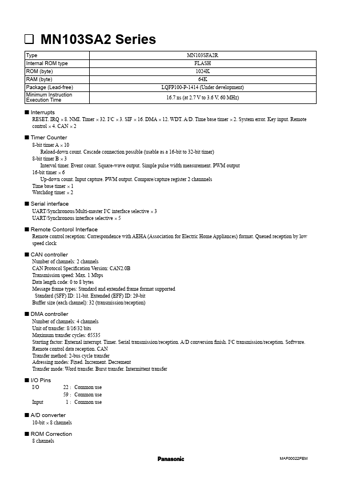

Preview of MN103SA2 PDF
MN103SA2 Datasheet Preview Page 2 MN103SA2 Datasheet Preview Page 3

Datasheet Details

Part number:

MN103SA2

Manufacturer:

Panasonic

File Size:

316.41 KB

Description:

Microcontroller.
