NC2D-DC24V

5A slim power relays

NC2D-DC24V Features

* 1. Compact, slim design Use of high-performance flat electromagnetic design achieves 10.9 mm .429 inch profile, flat type thin package. Slim type, with width of 11.2 mm .441 inch, enables high-density mounting on PC boards. 2. High reliability Provides stable contact pressure needed for card lift-off c

NC2D-DC24V Datasheet (675.98 KB)

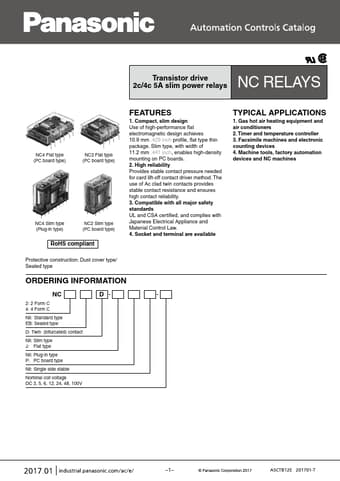

Preview of NC2D-DC24V PDF

Datasheet Details

Part number:

NC2D-DC24V

Manufacturer:

Panasonic

File Size:

675.98 KB

Description:

5a slim power relays.
Transistor drive NC RELAYS2c/4c 5A slim power relays NC4 Flat type (PC board type) NC2 Flat type (PC board type) NC4 Slim type (Plug-in type) NC2 .
