NC2D-P-DC3V

5A slim power relays

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor Panasonic Electronic Components NC2D-P-DC3V RELAY GEN PURPOSE DPDT 5A 3V DigiKey 0 20 units
$18.85

NC2D-P-DC3V Datasheet (675.98 KB)

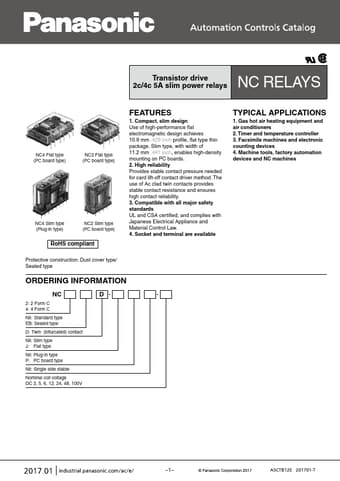

Preview of NC2D-P-DC3V PDF

Datasheet Details

Part number:

NC2D-P-DC3V

Manufacturer:

Panasonic

File Size:

675.98 KB

Description:

5a slim power relays.
Transistor drive NC RELAYS2c/4c 5A slim power relays NC4 Flat type (PC board type) NC2 Flat type (PC board type) NC4 Slim type (Plug-in type) NC2 .

NC2D-P-DC3V Features

* 1. Compact, slim design Use of high-performance flat electromagnetic design achieves 10.9 mm .429 inch profile, flat type thin package. Slim type, with width of 11.2 mm .441 inch, enables high-density mounting on PC boards. 2. High reliability Provides stable contact pressure needed for card lift-off c
