NC2D-P-DC48V, NC2D-JP-AC12V - 5A slim power relays

Panasonic

Datasheet Details

Part number	NC2D-P-DC48V, NC2D-JP-AC12V
Manufacturer	Panasonic ↗
File Size	675.98 KB
Description	5A slim power relays
Datasheet	NC2D-JP-AC12V-Panasonic.pdf
Note	This datasheet PDF includes multiple part numbers: NC2D-P-DC48V, NC2D-JP-AC12V. Please refer to the document for exact specifications by model.

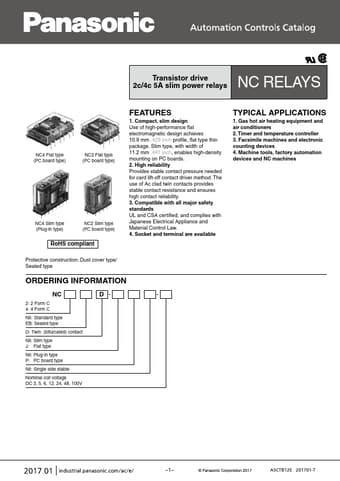

1. Compact, slim design Use of high-performance ﬂat electromagnetic design achieves 10.9 mm .429 inch proﬁle, ﬂat type thin package. Slim type, with width of 11.2 mm .441 inch, enables high-density mounting on PC boards. 2. High reliability Provides stable contact pressure needed for card lift-off contact driver method. The use of Ac clad twin contacts provides stable contact resistance and ensures high contact reliability. 3. Compatible with all major safety standards UL and CSA certiﬁed, and c.
