TC-20B12 Color Television Service Manual

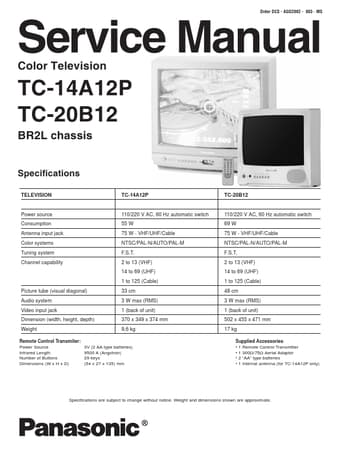

Service Manual Color Television Order DCS - AGO2002 - 003 - MS TC-14A12P TC-20B12 BR2L chassis Specifications TELEVISION TC-14A12P TC-20B12 Power source Consumption Antenna input jack Color systems Tuning system Channel capability 110/220 V AC, 60 Hz automatic switch 55 W 75 W - VHF/UHF/Cable NTSC/PAL-N/AUTO/PAL-M F.S.T. 2 to 13 (VHF) 14 to 69 (UHF) 1 to 125 (Cable) 110/220 V AC, 60 Hz automatic switch 69 W 75 W - VHF/UHF/Cable NTSC/PAL-N/AUTO/PAL-M F.S.T. 2 to 13 (VHF) 14 to 69 (UHF) 1 to .
