TC-21FJ30LA Datasheet - Panasonic

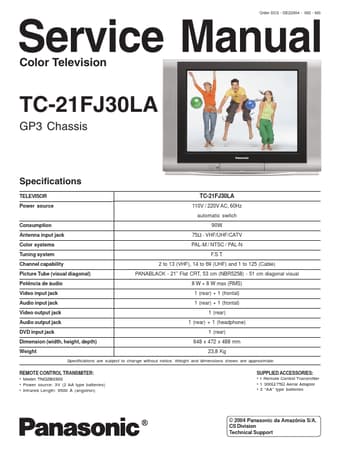

TC-21FJ30LA Color Television Service Manual

Order DCS - DEZ2004 - 002 - MS Service Manual Color Television TC-21FJ30LA GP3 Chassis Specifications TELEVISOR TC-21FJ30LA Power source 110V / 220V AC, 60Hz automatic switch Consumption 90W Antenna input jack 75Ω - VHF/UHF/CATV Color systems PAL-M / NTSC / PAL-N Tuning system F.S.T. Channel capability 2 to 13 (VHF), 14 to 69 (UHF) and 1 to 125 (Cable) Picture Tube (visual diagonal) PANABLACK - 21” Flat CRT, 53 cm (NBR5258) - 51 cm diagonal visual Potência de áudio 8 W + 8 W .

TC-21FJ30LA-Panasonic.pdf

Preview of TC-21FJ30LA PDF
TC-21FJ30LA Datasheet Preview Page 2 TC-21FJ30LA Datasheet Preview Page 3

Datasheet Details

Part number:

TC-21FJ30LA

Manufacturer:

Panasonic

File Size:

3.53 MB

Description:

Color television service manual.
