TX-25CK1F Color TV Service Manual

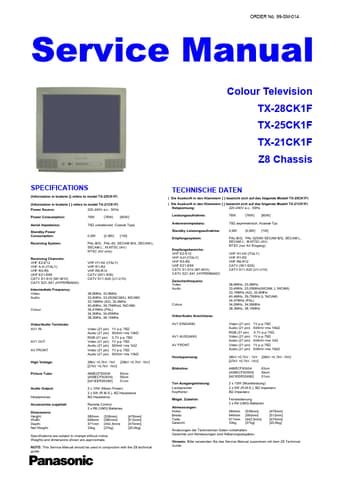

ORDER No. 99-SM-014 Colour Television TX-28CK1F TX-25CK1F TX-21CK1F Z8 Chassis SPECIFICATIONS (Information in brakets {} refers to model TX-25CK1F) (Information in brakets [ ] refers to model TX-21CK1F) Power Source: 220-240V a.c., 50Hz Power Consumption: 76W {76W} [60W] Aerial Impedance: Standby Power Consumption: Receiving System: Receiving Channels: VHF E2-E12 VHF A-H (ITALY) VHF R3-R5 UHF E21-E69 CATV S1-S10 (M1-M10) CATV S21-S41 (HYPERBAND) Intermediate Frequency: Video Audio Colo.
