TX2SA-LT-24V-TH, TX2-1.5V-TH Datasheet - Panasonic

TX2SA-LT-24V-TH, TX2-1.5V-TH, TX RELAYS

TX-TH Small size, controlled 7.5A inrush current possible TESTING TX RELAYS TH types RoHS compliant .

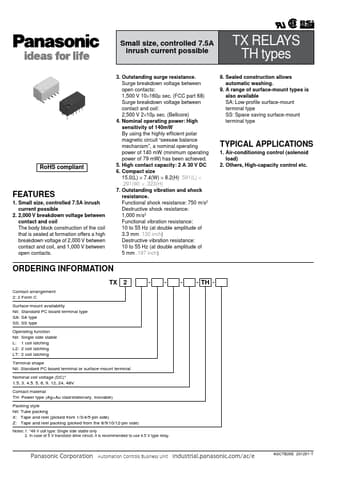

 datasheet Preview Page 1 from Datasheet4u.com

TX2-1.5V-TH-Panasonic.pdf

This datasheet PDF includes multiple part numbers: TX2SA-LT-24V-TH, TX2-1.5V-TH. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

TX2SA-LT-24V-TH, TX2-1.5V-TH

Manufacturer:

Panasonic

File Size:

53.04 KB

Description:

TX RELAYS

Note:

This datasheet PDF includes multiple part numbers: TX2SA-LT-24V-TH, TX2-1.5V-TH.
Please refer to the document for exact specifications by model.

Features

* 1. Small size, controlled 7.5A inrush current possible 2. 2,000 V breakdown voltage between contact and coil The body block construction of the coil that is sealed at formation offers a high breakdown voltage of 2,000 V between contact and coil, and 1,000 V between open contacts. 3. Outstanding sur

Applications

* 1. Air-conditioning control (solenoid load) 2. Others, High-capacity control etc. ORDERING INFORMATION TX 2 Contact arrangement 2: 2 Form C Surface-mount availability Nil: Standard PC board terminal type SA: SA type SS: SS type Operating function Nil: Single side stable L: 1 coil latching L2: 2 coi
