TX2Sx-L2-4.5V-Z, TX2-3V, TX RELAYS

TX Best seller with broad lineup and AC 2000 V breakdown voltage.3.Nominal operating power: High sensitivity of 140mW By using the highly efficient .

TX2-3V_Panasonic.pdf

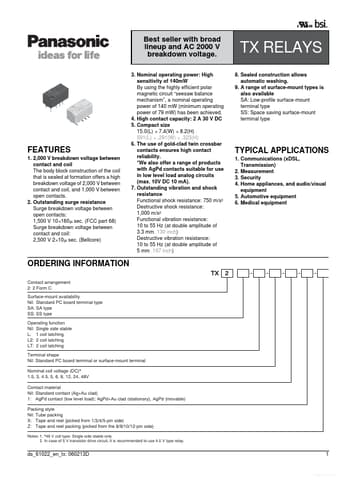

TX2Sx-L2-4.5V-Z Datasheet Preview — This datasheet PDF includes multiple part numbers: TX2Sx-L2-4.5V-Z, TX2-3V. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

TX2Sx-L2-4.5V-Z, TX2-3V

Manufacturer:

Panasonic

File Size:

3.33 MB

Description:

TX RELAYS

Note:

This datasheet PDF includes multiple part numbers: TX2Sx-L2-4.5V-Z, TX2-3V.
Please refer to the document for exact specifications by model.

Features

* 1. 2,000 V breakdown voltage between contact and coil The body block construction of the coil that is sealed at formation offers a high breakdown voltage of 2,000 V between contact and coil, and 1,000 V between open contacts. 2. Outstanding surge resistance Surge breakdown voltage between open conta

Applications

* 1. Communications (xDSL, Transmission) 2. Measurement 3. Security 4. Home appliances, and audio/visual equipment 5. Automotive equipment 6. Medical equipment ORDERING INFORMATION TX 2 Contact arrangement 2: 2 Form C Surface-mount availability Nil: Standard PC board terminal type SA: SA type SS: SS
