TX2Sx-LT-9V-Z - TX RELAYS

Product Overview

Panasonic

📥 Download Datasheet

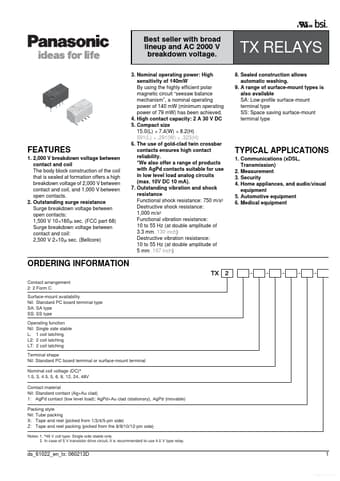

TX2Sx-LT-9V-Z TX RELAYS by Panasonic - Datasheet Preview — Datasheet preview – TX2Sx-LT-9V-Z

Datasheet Details

Part number	TX2Sx-LT-9V-Z
Manufacturer	Panasonic
File Size	3.33 MB
Description	TX RELAYS
Datasheet	TX2Sx-LT-9V-Z Datasheet
Note	This datasheet PDF includes multiple part numbers: TX2Sx-LT-9V-Z, TX2-3V. Please refer to the document for exact specifications by model.
Additional preview pages of the TX2Sx-LT-9V-Z datasheet.

Product details

Features

1. 2,000 V breakdown voltage between contact and coil The body block construction of the coil that is sealed at formation offers a high breakdown voltage of 2,000 V between contact and coil, and 1,000 V between open contacts. 2. Outstanding surge resistance Surge breakdown voltage between open contacts: 1,500 V 10160 sec. (FCC part 68) Surge breakdown voltage between contact and coil: 2,500 V 210 sec. (Bellcore).
