UR18650NSX Datasheet - Panasonic

UR18650NSX - Rechargeable Battery

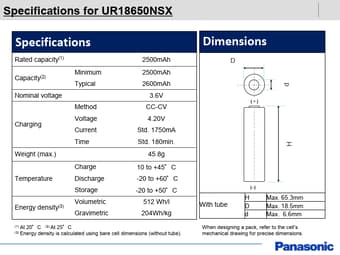

Specifications for UR18650NSX Specifications Rated capacity(1) Capacity(2) Nominal voltage Charging Weight (max.) Temperature Energy density(3) Minimum Typical Method Voltage Current Time Charge Discharge Storage Volumetric Gravimetric 2500mAh 2500mAh 2600mAh 3.6V CC-CV 4.20V Std.

1750mA Std.

180min.

45.8g 10 to +45° C -20 to +60° C -20 to +50° C 512 Wh/l 204Wh/kg (1) At 20° C (2) At 25° C (3) Energy density is calculated using bare cell dimensions (without tube).

Dimensions D (+) Hd Wit

UR18650NSX-Panasonic.pdf

Preview of UR18650NSX PDF
UR18650NSX Datasheet Preview Page 2 UR18650NSX Datasheet Preview Page 3

Datasheet Details

Part number:

UR18650NSX

Manufacturer:

Panasonic

File Size:

110.96 KB

Description:

Rechargeable battery.
