DLIS-2K Datasheet - Panavision Imaging

Ultra-Configurable Monochrome Linear Sensor

DLIS-2K Features

* Pixel Orientation Pixel Layout Dimension in microns.

* Four Rows: 1 row of tall pixels (4x32 micron) and 3 Readout starts at Pixel 1, selected row. rows of square pixels (4x4 micron)

* Integrated 11 bit Distributed A/D with parallel 10 bit digital output

* Output speed

DLIS-2K General Description

output * Integrated CDS * Multiple Readout modes *Ambient Light Subtraction *High Dynamic Range (HDR) *Correlated Multi-Sampling (CMS) The DLIS-2K Linear Image Sensor consists of 4 rows of pixels, each with 2080 optical pixels and 16 dark pixels. Three rows .

DLIS-2K Datasheet (401.04 KB)

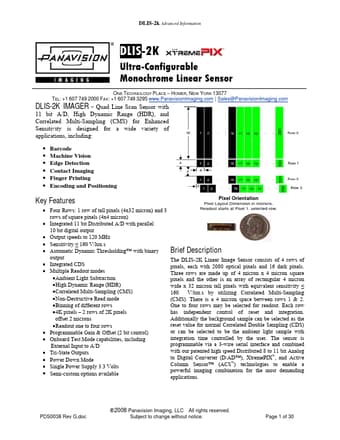

Preview of DLIS-2K PDF

Datasheet Details

Part number:

DLIS-2K

Manufacturer:

Panavision Imaging

File Size:

401.04 KB

Description:

Ultra-configurable monochrome linear sensor.
DLIS-2k Advanced Information DLIS-2K Ultra-Configurable Monochrome Linear Sensor ONE TECHNOLOGY PLACE HOMER, NEW YORK 13077 TEL: +1 607 74.
