PI3USB40 Datasheet - Pericom Semiconductor Corporation

2:1 Mux/DeMux USB 2.0 Switch

PI3USB40 Features

* RON is 4Ω typical

* Low bit-to-bit skew: 200ps

* Low crosstalk:

* 27dB @ 250MHz

* Low Current Consumption; 20μA

* Near-Zero propagation delay: 250ps

* Switching speed: 3ns

* Channel On-Capacitance: 6pF (typical)

* VCC Operating

PI3USB40 General Description

The PI3USB40 is a 16- to 8-channel multiplexer/demultiplexer Switch with Hi-Z outputs. Industry leading advantages include a propagation delay of less than 250ps, resulting from its low channel resistance and I/O capacitance. The device multiplexes differential outputs from a USB transceiver device .

PI3USB40 Datasheet (245.50 KB)

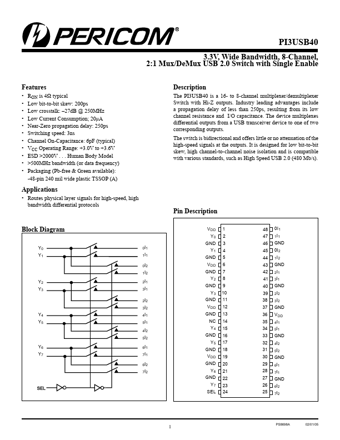

Preview of PI3USB40 PDF

Datasheet Details

Part number:

PI3USB40

Manufacturer:

Pericom Semiconductor Corporation

File Size:

245.50 KB

Description:

2:1 mux/demux usb 2.0 switch.
