PI3USB4000A - Ultra-High Voltage Protection USB2 1:2 Mux/DeMux

PI3USB4000A Description

Pb Lead-free Green A product Line of Diodes Incorporated PI3USB4000A Ultra-High Voltage Protection USB2 1:2 Mux/DeMux .

PI3USB4000A Features

* ÎÎDifferential Bi-Directional 2:1 Mux/DeMux ÎÎWide Input Voltage Range: 0-5.5V ÎÎWide bandwidth: 1GHz Ultra-low Con: 7pF Ultra-low Ron: 5Ω (typ) ÎÎLow Propagation Delay, 0.25ns typ ÎÎLow Off-Isolation, -30dB@240MHz ÎÎLow Crosstalk: -35dB@240MHz, ÎÎLow Power Consumption: 35µA typical ÎÎWide Suppl

📥 Download Datasheet

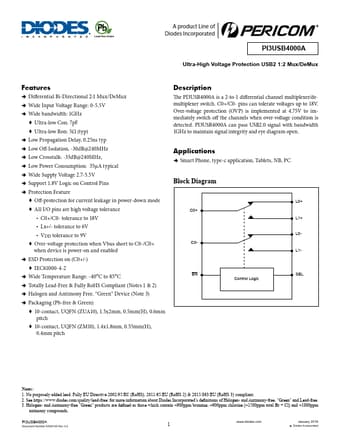

Preview of PI3USB4000A PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
PI3USB4000A
Manufacturer
DIODES ↗
File Size
1.02 MB
Datasheet
PI3USB4000A-Diodes.pdf
Description
Ultra-High Voltage Protection USB2 1:2 Mux/DeMux
