PI5C3125

4-Bit Bus Switch with Individual Enables

PI5C3125 Features

* Near-Zero propagation delay

* 5Ω switches connect inputs to outputs

* Direct bus connection when switches are ON Ultra Low Quiescent Power (0.1µA Typical)

* Ideally suited for notebook applications Description Pericom Semiconductor’s PI5C3125 and PI5C3126

PI5C3125 General Description

Pericom Semiconductor’s PI5C3125 and PI5C3126 are 4-bit Bus Switches designed with four individual 5Ω bus switches with fast indiviual enables in an industry standard 74XX125/126 pinout. When enabled via the associated Bus Enable (BE) pin, the “A” pin is directly connected to the “B” pin for that pa.

PI5C3125 Datasheet (393.64 KB)

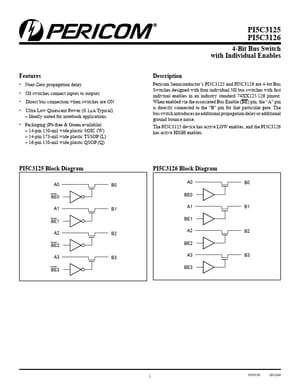

Preview of PI5C3125 PDF

Datasheet Details

Part number:

PI5C3125

Manufacturer:

Pericom Semiconductor Corporation

File Size:

393.64 KB

Description:

4-bit bus switch with individual enables.
