PI5C3244 Datasheet, Switch, Pericom Semiconductor Corporation

PI5C3244 Features

• Switch
• Near-Zero propagation delay 5-ohm switches connect inputs to outputs when enabled Direct bus connection when switches are ON Ultra Low Quiescent

PDF File Details

Part number:

PI5C3244

Manufacturer:

Pericom Semiconductor Corporation

File Size:

148.53kb

Download:

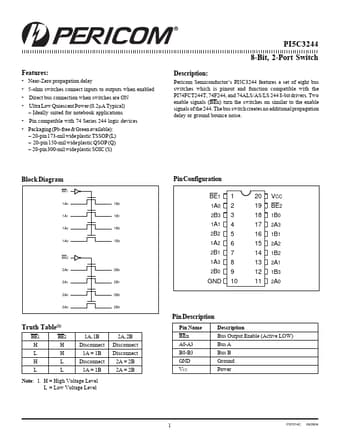

📄 Datasheet

Description:

8-bit/ 2-port switch. Pericom Semiconductor’s PI5C3244 features a set of eight bus switches which is pinout and function compatible with the PI74FCT244T,

PI5C3244 Application

• Applications
• Pin compatible with 74 Series 244 logic devices
• Packaging (Pb-free & Green available):
    – 20-pin 173
