PI5V332QE Datasheet - Pericom Semiconductor Corporation

PI5V332QE, Low On-Resistance Wideband/Video Quad with Individual Control

PI5V332 Low On-Resistance Wideband/Video Quad with Individual Control .
Pericom Semiconductor’s PI5V332 is a true bidirectional Quad Video Switch that is recommended for RGB, S-Video, or composite video switching applicat.

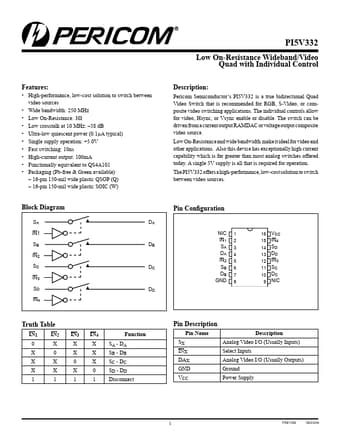

datasheet Preview Page 1 from Datasheet4u.com

PI5V332QE_PericomSemiconductorCorporation.pdf

PI5V332QE Datasheet Preview — Preview of PI5V332QE PDF

Datasheet Details

Part number:

PI5V332QE

Manufacturer:

Pericom Semiconductor Corporation

File Size:

405.72 KB

Description:

Low On-Resistance Wideband/Video Quad with Individual Control

Features

* High-performance, low-cost solution to switch between video sources
* Wide bandwidth: 250 MHz
* Low On-Resistance: 3Ω
* Low crosstalk at 10 MHz:
* 58 dB
* Ultra-low quiescent power (0.1µA typical)
* Single supply operation: +5.0V
* Fa

Applications

* The individual controls allow for video, Hsync, or Vsync enable or disable. The switch can be driven from a current output RAMDAC or voltage output composite video source. Low On-Resistance and wide bandwidth make it ideal for video and other applications. Also this device has exceptionally high cu
