PI6C39911 Datasheet, Buffer, Pericom Semiconductor Corporation

PI6C39911 Features

  • Buffer
  • All output pair skew <100ps typical (250 Max.)
  • 12.5 MHz to 133 MHz output operation
  • 3.125 MHz to 133 MHz input operation (input as low as 3.125 MHz for 4x

PDF File Details

Part number:

PI6C39911

Manufacturer:

Pericom Semiconductor Corporation

File Size:

262.85kb

Download:

📄 Datasheet

Description:

3.3v high speed lvttl or balanced output programmable skew clock buffer. The PI6C39911 offers selectable control over system clock functions. These multiple-output clock drivers provide the system integrato

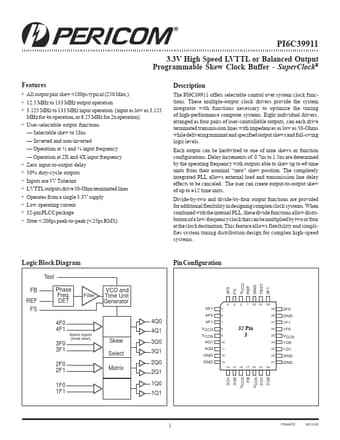

Datasheet Preview: PI6C39911 📥 Download PDF (262.85kb)
Page 2 of PI6C39911 Page 3 of PI6C39911
