PI74ALVCH16244A

16-Bit Buffer Driver with 3-State Outputs

PI74ALVCH16244A Features

* Designed for low-voltage operation VCC = 2.3V to 3.6V Hysteresis on all inputs Typical VOLP (Output Ground Bounce) < 0.8V at VCC = 3.3V, TA = 25°C Typical VOHV (Output VOH Undershoot) < 2.0V at VCC = 3.3V, TA = 25°C Bus

PI74ALVCH16244A General Description

Pericom Semiconductor’s PI74ALVCH16244 is an non-inverting 16-bit buffer/driver designed for low-voltage 2.3V to 3.6V VCC operation. The buffer/driver is designed specifically to improve both the performance and density of 3-State memory address drivers, clock drivers, and bus-oriented receivers and.

PI74ALVCH16244A Datasheet (130.84 KB)

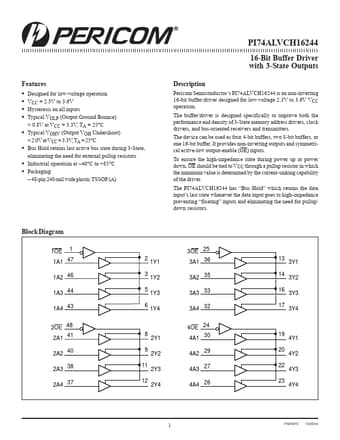

Preview of PI74ALVCH16244A PDF

Datasheet Details

Part number:

PI74ALVCH16244A

Manufacturer:

Pericom Semiconductor Corporation

File Size:

130.84 KB

Description:

16-bit buffer driver with 3-state outputs.
12345678901234567890123456789012123456789012345678901234567890121234567890123456789012345678901212345678901234567890123456789012123456789012 123456789.
