PI74ALVCH16721 - 3.3V 20-Bit Flip-Flop

Product Overview

Pericom Semiconductor

Datasheet Details

Part number	PI74ALVCH16721
Manufacturer	Pericom Semiconductor
File Size	297.27 KB
Description	3.3V 20-Bit Flip-Flop
Datasheet	PI74ALVCH16721 Datasheet

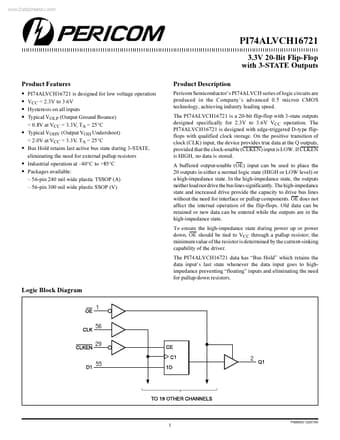

Additional preview pages of the PI74ALVCH16721 datasheet.

Product details

Description

Pericom Semiconductors PI74ALVCH series of logic circuits are produced in the Companys advanced 0.5 micron CMOS technology, achieving industry leading speed.

Features

PI74ALVCH16721 is designed for low voltage operation VCC = 2.3V to 3.6V Hysteresis on all inputs Typical VOLP (Output Ground Bounce) < 0.8V at VCC = 3.3V, TA = 25°C Typical VOHV (Output VOH Undershoot) < 2.0V at VCC = 3.3V, TA = 25°C Bus Hold retains last active bus state during 3-STATE, eliminating the need for external pullup resistors Industrial operation at 40°C to +85°C Packages available: 56-pin 240 mil wide.
