VTL5C9 - Low Cost Axial Vactrols

The VTL5C9 by PerkinElmer Optoelectronics is a Low Cost Axial Vactrols. Below is the official datasheet preview.

📥 Download Datasheet

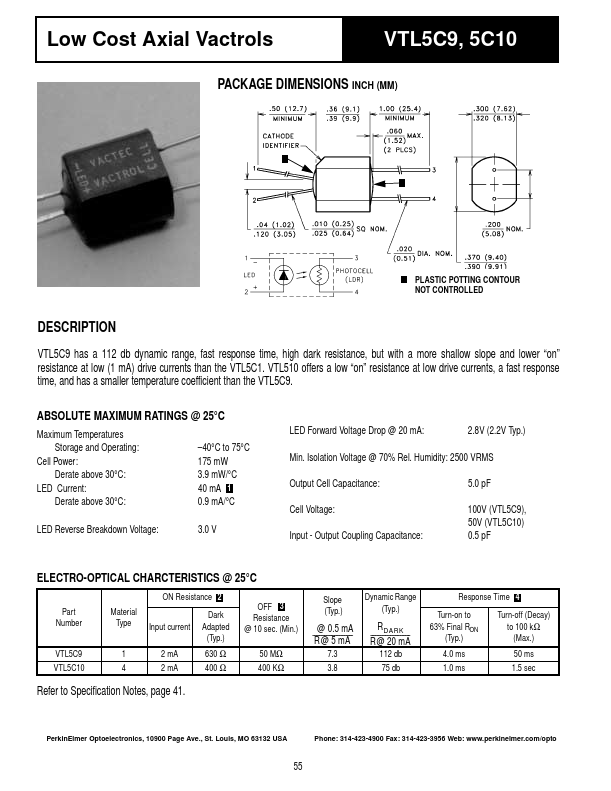

Official preview page of the VTL5C9 Low Cost Axial Vactrols datasheet (PerkinElmer Optoelectronics).

Datasheet Details

Part number VTL5C9
Manufacturer PerkinElmer Optoelectronics
File Size 68.60 KB
Description Low Cost Axial Vactrols
Datasheet download datasheet VTL5C9-PerkinElmerOptoelectronics.pdf

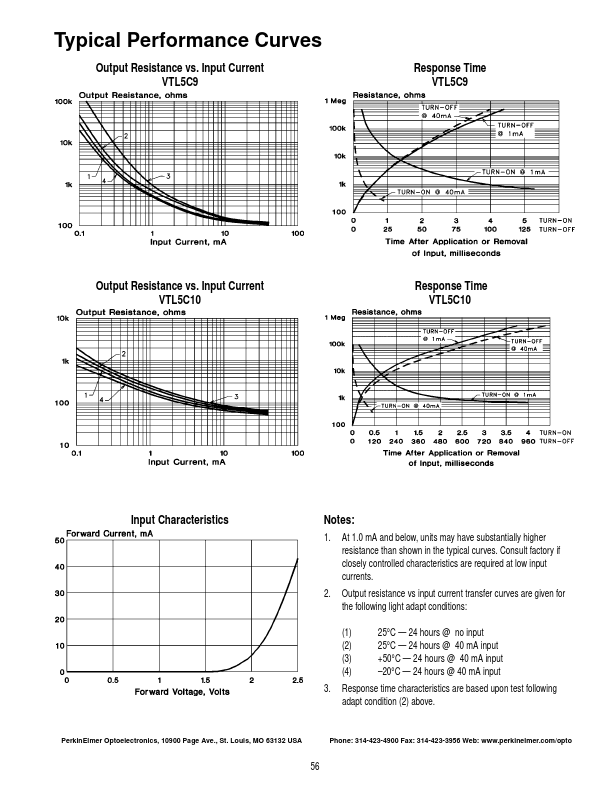

Additional preview pages of the VTL5C9 datasheet.

VTL5C9 Product details

Description

VTL5C9 has a 112 db dynamic range, fast response time, high dark resistance, but with a more shallow slope and lower “on” resistance at low (1 mA) drive currents than the VTL5C1. 40°C to 75°C 175 mW 3.9 mW/°C
