VTT1214 - .040 NPN Phototransistors

Datasheet Summary

Description

A medium area high speed NPN silicon phototransistor possessing excellent sensitivity and good speed mounted in a lensed, end looking, transparent plastic package.

These devices are spectrally and mechanically matched to the VTE12xx series of IREDs.

PerkinElmer Optoelectronics

📥 Download Datasheet

Datasheet Details

Part number	VTT1214
Manufacturer	PerkinElmer Optoelectronics
File Size	21.49 KB
Description	.040 NPN Phototransistors
Datasheet	VTT1214 Datasheet

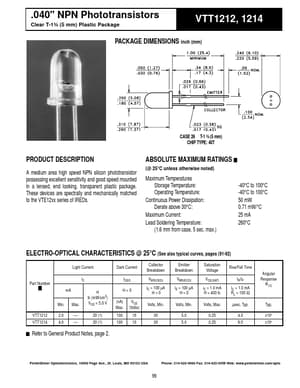

Additional preview pages of the VTT1214 datasheet.

📁 Similar Datasheet

VTT12 - Definite Time Delay Relay (ALSTOM)
VTT11 - Definite Time Delay Relay (ALSTOM)

Other Datasheets by PerkinElmer Optoelectronics

VTT1212 - .040 NPN Phototransistors
VTT1222W - .025 NPN Phototransistors
VTT1223W - .025 NPN Phototransistors
VTT1225 - .025 NPN Phototransistors
VTT1226 - .025 NPN Phototransistors
VTT1227 - .025 NPN Phototransistors
VTT1015 - .050 NPN Phototransistors
VTT1016 - .050 NPN Phototransistors

Full PDF Text Transcription

Click to expand full text

.040" NPN Phototransistors Clear T-1¾ (5 mm) Plastic Package VTT1212, 1214 PACKAGE DIMENSIONS inch (mm) CASE 26 T-1 ¾ (5 mm) CHIP TYPE: 40T PRODUCT DESCRIPTION A medium area high speed NPN silicon phototransistor possessing excellent sensitivity and good speed mounted in a lensed, end looking, transparent plastic package. These devices are spectrally and mechanically matched to the VTE12xx series of IREDs. ABSOLUTE MAXIMUM RATINGS (@ 25°C unless otherwise noted) Maximum Temperatures Storage Temperature: Operating Temperature: Continuous Power Dissipation: Derate above 30°C: Maximum Current: Lead Soldering Temperature: (1.6 mm from case, 5 sec. max.) -40°C to 100°C -40°C to 100°C 50 mW 0.
