BA545AL Datasheet, Diode, Philips

BA545AL Features

  • Diode
  • Continuous reverse voltage: max. 125 V
  • Repetitive peak forward current: max. 625 mA
  • Low reverse current: max. 1 nA
  • Switching time: typ. 1.5 µs. A

PDF File Details

Part number:

BA545AL

Manufacturer:

Philips

File Size:

54.60kb

Download:

📄 Datasheet

Description:

Low leakage diode. Epitaxial medium-speed switching diode with a low leakage current in a small SOD80C glass SMD package. k a MAM061 Fig.1 Simplifie

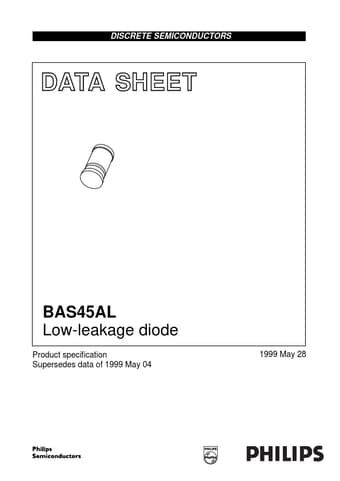

Datasheet Preview: BA545AL 📥 Download PDF (54.60kb)
Page 2 of BA545AL Page 3 of BA545AL

BA545AL Application

  • Applications handbook, 4 columns BAS45AL DESCRIPTION Epitaxial medium-speed switching diode with a low leakage current in a small SOD80C glass SMD
