BA5406

12V / 5W dual power amplifier

Rohm

BA5406 Features

* BA5406 1) Good low voltage characteristics (Operation from Vcc=5 V) 2) Ripple filter (6pin) also can be used as muting pin (Make 6pin GND potential) 3) Small thermal resistance package and simple heatsink design BA5417 1) Small pop noise when standby switches ON/OFF 2) Built-in circuit to prevent ri

BA5406 General Description

The BA5406/BA5417 is a dual OTL monolithic power IC with two built-in, high output speaker amplifier circuits. High output of 5W×2 can be produced when VCC=12 V and RL=3Ω, and 2.8 W×2 when VCC=9V and RL=3Ω. The BA5406, which uses a high allowable power dissipation package, has a simple heatsink desi.

BA5406 Datasheet (778.29 KB)

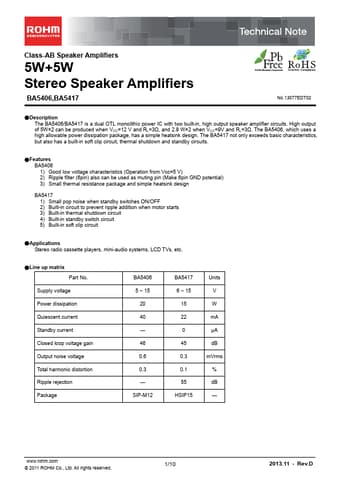

BA5406 Datasheet Preview — Preview of BA5406 PDF

Datasheet Details

Part number:

BA5406

Manufacturer:

ROHM ↗

File Size:

778.29 KB

Description:

12v / 5w dual power amplifier.
