BAV101 - General purpose diodes

This page provides the datasheet information for the BAV101, a member of the BAV100 General purpose diodes family.

Datasheet Summary

Description

The BAV100 to BAV103 are switching diodes fabricated in planar technology, and encapsulated in small hermetically sealed glass SOD80C SMD packages.

Switching in industrial equipment e.g.

Features

  • Small hermetically sealed glass SMD package.
  • Switching speed: max. 50 ns.
  • General.

📥 Download Datasheet

Datasheet preview – BAV101

Datasheet Details

Part number BAV101
Manufacturer Philips
File Size 65.22 KB
Description General purpose diodes
Datasheet download datasheet BAV101 Datasheet

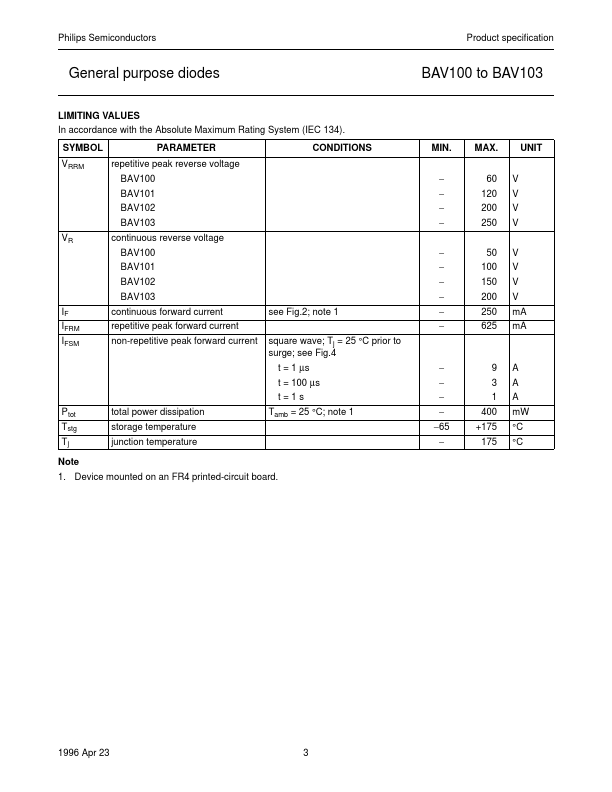

Additional preview pages of the BAV101 datasheet.

📁 Similar Datasheet

  • BAV101 - HIGH SPEED SWITCHING DIODES (EIC)
  • BAV101 - SURFACE MOUNT FAST SWITCHING DIODE (Sunmate)
  • BAV101 - Small Signal Diodes (Kingtronics)
  • BAV101 - Small Signal Switching Diodes (Vishay)
  • BAV101 - Fast Switching Diode (GOOD-ARK)
  • BAV101 - Hermetically Sealed Glass High Voltage Switching Diodes (Taiwan Semiconductor)
  • BAV101 - Small Signal Diodes (MCC)
  • BAV101 - HIGH SPEED SILICON DIODES (CDIL)
  • BAV101 - Surface Mount Small Signal Switching Diode (SeCoS)
  • BAV101 - Ultrafast silicon rectifier diodes (Semikron)
Other Datasheets by Philips
  • BAV100 - General purpose diodes
  • BAV102 - General purpose diodes
  • BAV103 - General purpose diodes
  • BAV70 - High-speed double diode
  • BAV70T - High-speed double diode
  • BAV99 - High-speed double diode
  • BAV99S - High-speed double diode
  • BAV99W - High-speed double diode

Full PDF Text Transcription

Click to expand full text

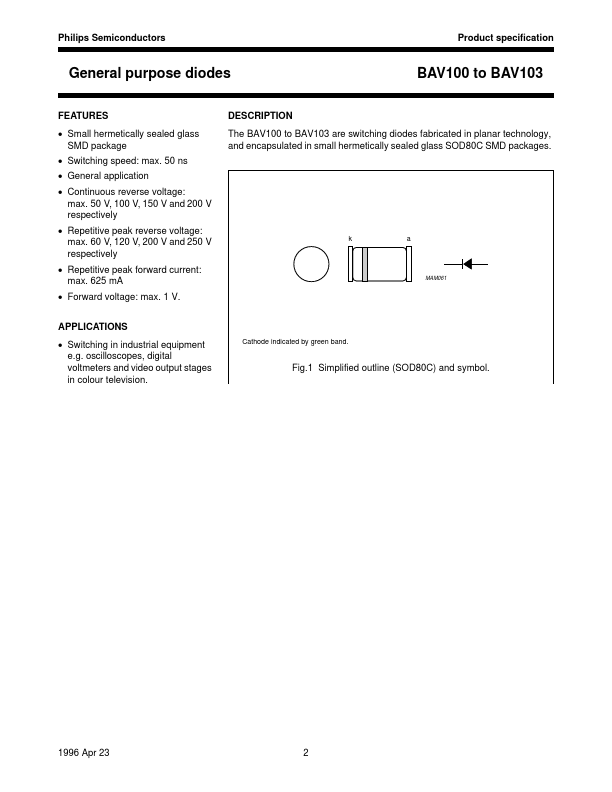

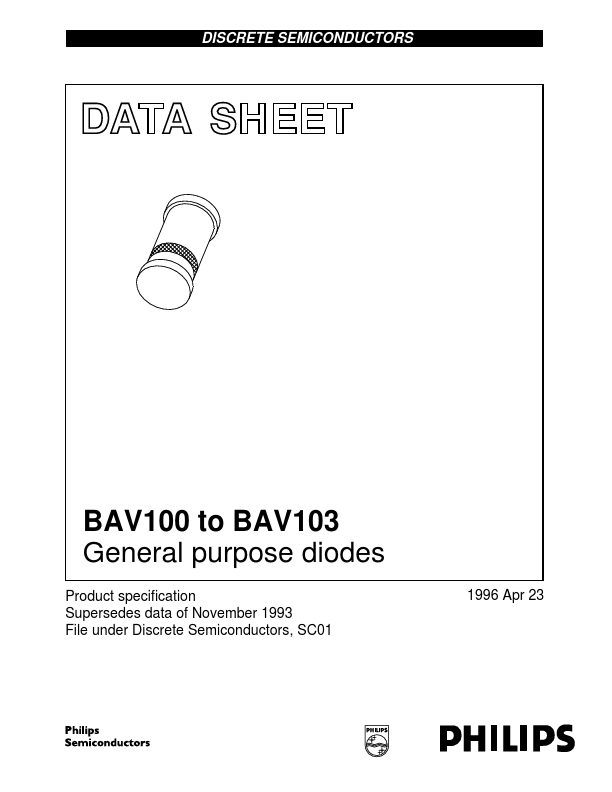

DISCRETE SEMICONDUCTORS DATA SHEET 1/3 page (Datasheet) M3D054 BAV100 to BAV103 General purpose diodes Product specification Supersedes data of November 1993 File under Discrete Semiconductors, SC01 1996 Apr 23 Philips Semiconductors General purpose diodes Product specification BAV100 to BAV103 FEATURES • Small hermetically sealed glass SMD package • Switching speed: max. 50 ns • General application • Continuous reverse voltage: max. 50 V, 100 V, 150 V and 200 V respectively • Repetitive peak reverse voltage: max. 60 V, 120 V, 200 V and 250 V respectively • Repetitive peak forward current: max. 625 mA • Forward voltage: max. 1 V.
