CU1216LS - All Bands DVB-C Receiver Unit

Philips

📥 Download Datasheet

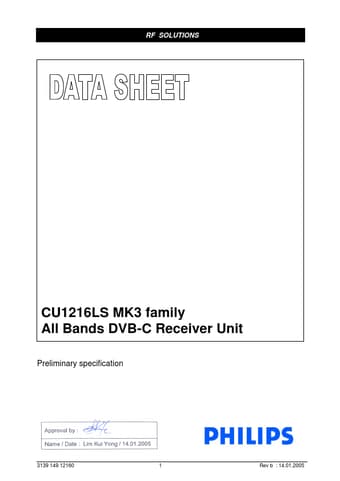

CU1216LS Datasheet Preview — Preview of CU1216LS PDF

Datasheet Details

Part number: CU1216LS
Manufacturer: Philips
File Size: 1.80 MB
Datasheet: CU1216LS_Philips.pdf
Description: All Bands DVB-C Receiver Unit

CU1216LS Product details

Description

DVB-C, MPEG-2 Parallel Transport Stream; F-long connector, IEC connector; active passive loop through, vertical www.DataSheet.net/ 12 NC 3139 147 24311 CU1216LS/A GI G H-3 DVB-C, MPEG-2 Parallel Transport Stream; F-long connector, IEC connector; active passive loop through, horizontal DVB-C, MPEG-2 Parallel Transport Stream; IEC connector, F-long connector; active passive loop through, vertical 3139 147 24321 CU1216LS/A IG G V-3 3139 147 24331

Features

Small size 40mm x 70mm x 13mm in horizontal mounting Digitally-controlled (PLL) tuning via I2C-bus Minimum power supply : 1.8V, 3.3V and 5V Fully compliant with ETS 300 429 specification for DVB-C application,ITU-T J.83 (Annex A,B & C) Output of MPEG-2 parallel/serial transport stream Digital SAW filter Support up to 256QAM Wide symbol rate of 0.87 to 6.9Mbaud Fulfill Cenelec requirements, EN55013 & EN55020.
