CU16-15D Free Mount Cylinder

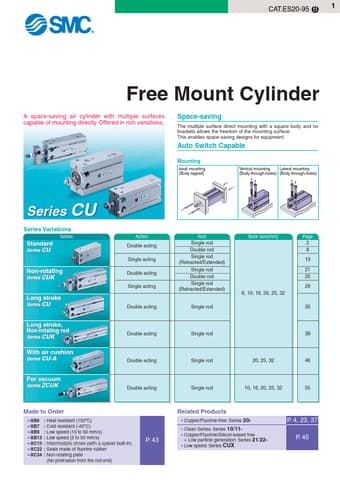

CAT.ES20-95 B 1 Free Mount Cylinder A space-saving air cylinder with multiple surfaces capable of mounting directly. Offered in rich variations. Space-saving The multiple surface direct mounting with a square body and no brackets allows the freedom of the mounting surface. This enables space-saving designs for equipment. Auto Switch Capable Mounting Axial mounting (Body tapped) Vertical mounting Lateral mounting (Body through-holes) (Body through-holes) Series CU Series Variations Series Ac.

CU16-15D Features

* cal Output Bore size (mm) Rod size (mm) 3 4 6 8 10 12 Operating direction OUT IN OUT IN OUT IN OUT IN OUT IN OUT IN Piston area (mm2) 28.3 21.2 78.5 66.0 201 172 314 264 491 412 804 691 Operating pressure (MPa) 0.3 8.49 6.36 23.6 19.8 60.3 51.6 94.2 79.2 147 124 241 207 0.5 14.2 10.6 39.3 33.0 101 8
