NE572 - Programmable analog compandor

Datasheet Summary

Description

The NE572 is a dual-channel, high-performance gain control circuit in which either channel may be used for dynamic range compression or expansion.

Features

  • time.
  • Independent control of attack and recovery.
  • Improved low frequency gain control ripple.
  • Complementary gain compression and expansion with external op amp PIN.

📥 Download Datasheet

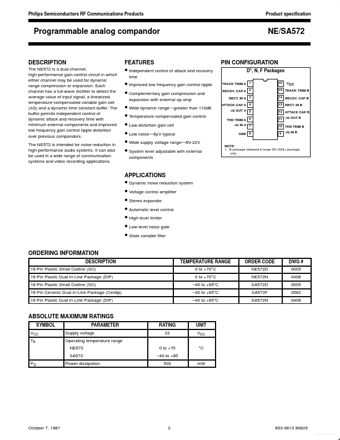

Datasheet preview – NE572

Datasheet Details

Part number NE572
Manufacturer Philips
File Size 89.90 KB
Description Programmable analog compandor
Datasheet download datasheet NE572 Datasheet
Additional preview pages of the NE572 datasheet.

📁 Similar Datasheet

  • NE570 - Telephone trunk comandor (Philipss)
  • NE570 - Compandor (ON Semiconductor)
  • NE571 - Compandor (Philipss)
  • NE576 - Low Power Compandor (NXP)
  • NE57600 - One-cell Lithium-ion battery protection with over/undercharge and overcurrent protection (Philipss)
  • NE57607 - Two-cell Lithium-ion battery protection with overcurrent / over- and under-voltage protection (Philipss)
  • NE57610 - Li-ion battery charger control with adjustable thresholds (Philipss)
  • NE57611 - Single cell Li-ion battery charger (Philipss)
  • NE57611BDH - Single cell Li-ion battery charger (Philipss)
  • NE577 - Unity Gain Level Programmable Low Power Compandor (NXP)
Other Datasheets by Philips
  • NE575 - Low Voltage Compandor
  • NE5750 - Audio Processor
  • NE5751 - Audio Processor - Filter and Control Section
  • NE5752 - Audio Processor - Companding / VOX and Amplifier
  • NE5753 - Audio Processor - Filter and Control Section
  • NE575A - Low Voltage Compandor
  • NE5018 - 8-Bit mp-compatible D/A converter
  • NE5019 - 8-Bit mp-compatible D/A converter

Full PDF Text Transcription

Click to expand full text
Philips Semiconductors RF Communications Products Product specification Programmable analog compandor NE/SA572 DESCRIPTION The NE572 is a dual-channel, high-performance gain control circuit in which either channel may be used for dynamic range compression or expansion. Each channel has a full-wave rectifier to detect the average value of input signal, a linearized, temperature-compensated variable gain cell (∆G) and a dynamic time constant buffer. The buffer permits independent control of dynamic attack and recovery time with minimum external components and improved low frequency gain control ripple distortion over previous compandors. The NE572 is intended for noise reduction in high-performance audio systems.
