NE571 - Compandor

Datasheet Summary

Description

The SA571 is a versatile low cost dual gain control circuit in which either channel may be used as a dynamic range compressor or expandor.

Features

  • Complete compressor and expandor in one IChip.
  • Temperature compensated.
  • Greater than 110dB dynamic range.
  • Operates down to 6VDC.
  • System levels adjustable with external components.
  • Distortion may be trimmed out.
  • Dynamic noise reduction systems.
  • Voltage-controlled amplifier 10 OUTPUT 2 9 THD TRIM 2 TOP VIEW NOTE: 1. SOL - Released in Large SO Package Only. SR00675 Figure 1. Pin Configuration.

📥 Download Datasheet

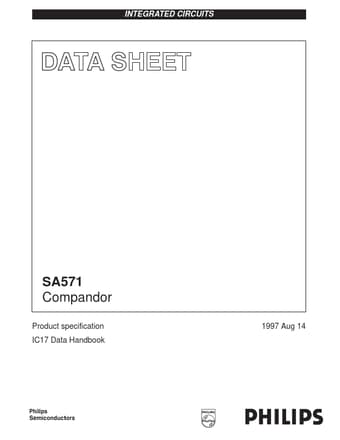

Datasheet preview – NE571
