P87C748 Datasheet - Philips

P87C748 8-bit microcontroller

The Philips 83C748/87C748 offers the advantages of the 80C51 architecture in a small package and at low cost. The 8XC748 Microcontroller is fabricated with Philips high-density CMOS technology. Philips epitaxial substrate minimizes CMOS latch-up sensitivity. The 8XC748 contains a 2k × 8 ROM (83C748).

P87C748 Features

* 80C51 based architecture

* Small package sizes

* 24-pin DIP (300 mil “skinny DIP”)

* 24-pin Shrink Small Outline Package (SSOP)

* 28-pin PLCC

* 87C748

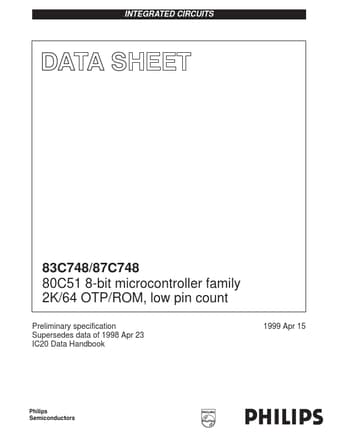

P87C748 Datasheet (127.14 KB)

Datasheet Details

Part number:

P87C748

Manufacturer:

Philips

File Size:

127.14 KB

Description:

8-bit microcontroller.
