SA2411 Datasheet, Wlan, Philips

SA2411 Features

  • Wlan
  • 75 Ω + 25j Ω differential inputs, internally matched
  • 50 Ω single-ended output, internally matched
  • 15 dB gain block
  • Power detector
  • Bias

PDF File Details

Part number:

SA2411

Manufacturer:

Philips

File Size:

117.17kb

Download:

📄 Datasheet

Description:

+20 dbm single chip linear amplifier for wlan. The SA2411 is a linear power amplifier designed for WLAN application in the 2.4 GHz band. Together with the SA2400A the chips form a

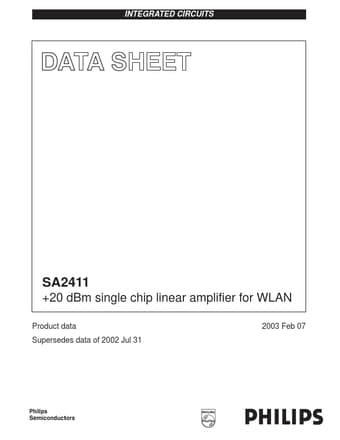

Datasheet Preview: SA2411 📥 Download PDF (117.17kb)
Page 2 of SA2411 Page 3 of SA2411

SA2411 Application

  • Applications
  • IEEE 802.11 and 802.11b radios
  • Supports DSSS and CCK modulation
  • Supports data rates: 1, 2, 5.5, and 11 M

TAGS

SA2411
+2
0
dBm
single
chip
linear
amplifier
for
WLAN
Philips
