SA24404

4A Synchronous Step-Down Regulator

SA24404 Features

* 4V to 36V Input Voltage Range

* 4A Output Current Capability

* Low RDS(ON) for Internal Switches: 41mΩ Top, 21mΩ Bottom

* Typical 30µA Quiescent Current and 1µA Shutdown Current.

* 300kHz to 2.2MHz Switching Frequency

* Synchronization to External Clock

* Spread Spectru

SA24404 General Description

The SA24404 is a high efficiency synchronous step-down DC-DC regulator with internal power and synchronous rectifier switches. It operates using fixed frequency and peak current control over a wide input voltage range of 4V to 36V, and can deliver up to 4A of continuous output current. The SA24404 i.

SA24404 Datasheet (1.29 MB)

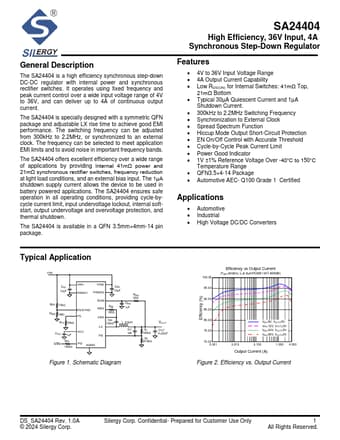

Preview of SA24404 PDF

Datasheet Details

Part number:

SA24404

Manufacturer:

Silergy

File Size:

1.29 MB

Description:

4a synchronous step-down regulator.
