SA23002A - 2A Single Synchronous Buck Converter

SA23002A Description

SA23002A 5.5V, 2A Single Synchronous Buck Converter General .
The SA23002A is a synchronous Buck converter with built-in power MOSFETs to supply adjustable power voltage requests.

SA23002A Features

* AEC-Q100-Grade 1 -40°C ~125°C
* 2.8V to 5.5V Input Voltage Range
* External Adjustable Voltage with ±1.5% Reference Accuracy
* Typical 1μA Shut Down Current
* Fixed 2.35MHz Switching Frequency
* PWM and PFM Operating Selectable
* 100% Duty Cycle for Lowest Dropout

SA23002A Applications

* Automotive Infotainment and Cluster
* Advanced Driver Assistance System (ADAS)
* Automotive Display
* Other Electronic Equipment VIN：2.8V to 5.5V Cin 10μF 8 VIN SW 2 7 VIN FB 4 SA23002A 5 EN PGND 1 6 MODE AGND 3 L 1μH Rtop 100k Rbot 49.9k VOUT：1.8V Cff 47pF Cout 20μF

📥 Download Datasheet

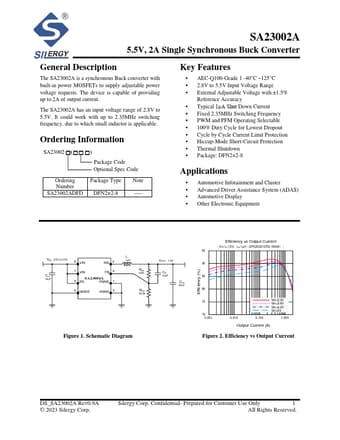

Preview of SA23002A PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SA23002A
Manufacturer
Silergy
File Size
1.35 MB
Datasheet
SA23002A-Silergy.pdf
Description
2A Single Synchronous Buck Converter
